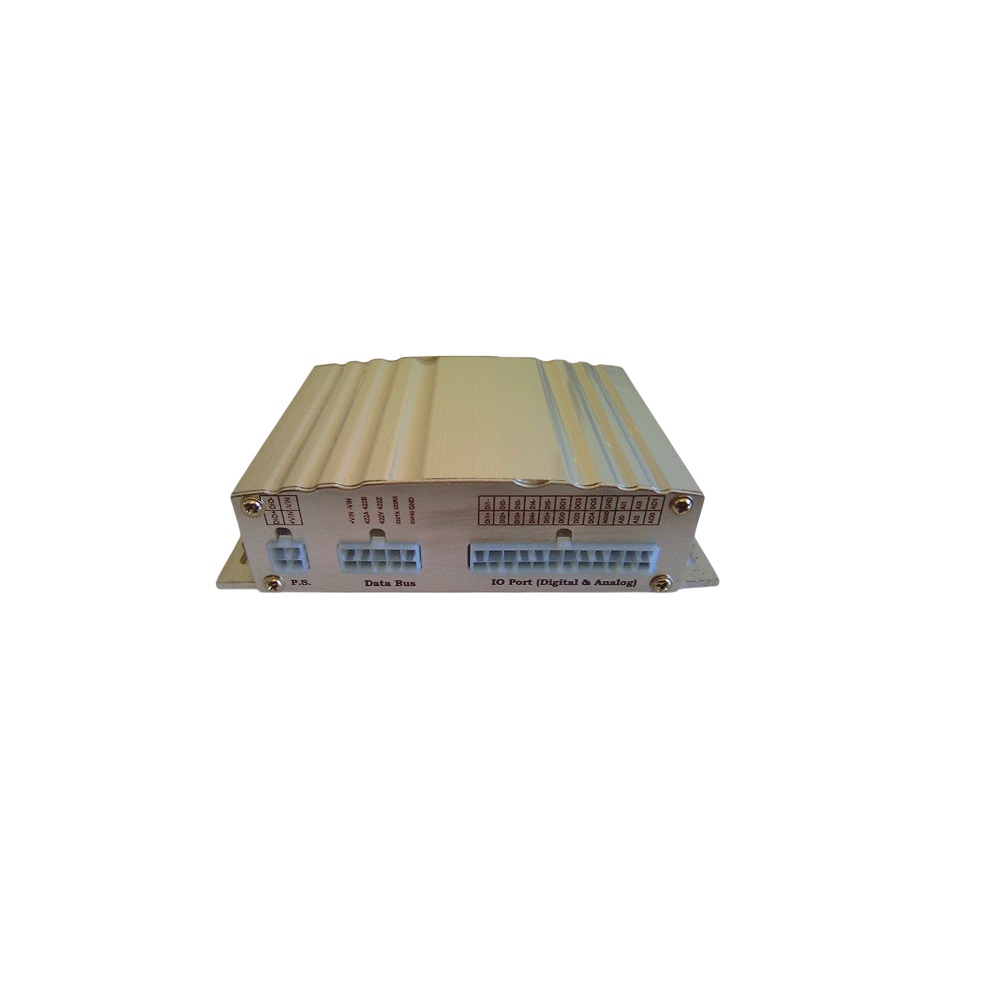

Interfaces
1. 6x Digital Input (isolated/Direction Protection)
2. 4x Analog Input (0-2.5 V /10 mA)
3. Direct GPS Data (RS232)
4. RS422 (Full Duplex/Up To 12Mbps)(± 15kV ESD /Protected)
5. RS232 (Up To 250kbps)(±15kV ESD/Protected)
6. Micro SD Reader
7. USB Full Speed
8. 6x Digital Output (Open Collector /0.5A)
9. 2x analog Out Put (0-2.5 V/0.5 A)

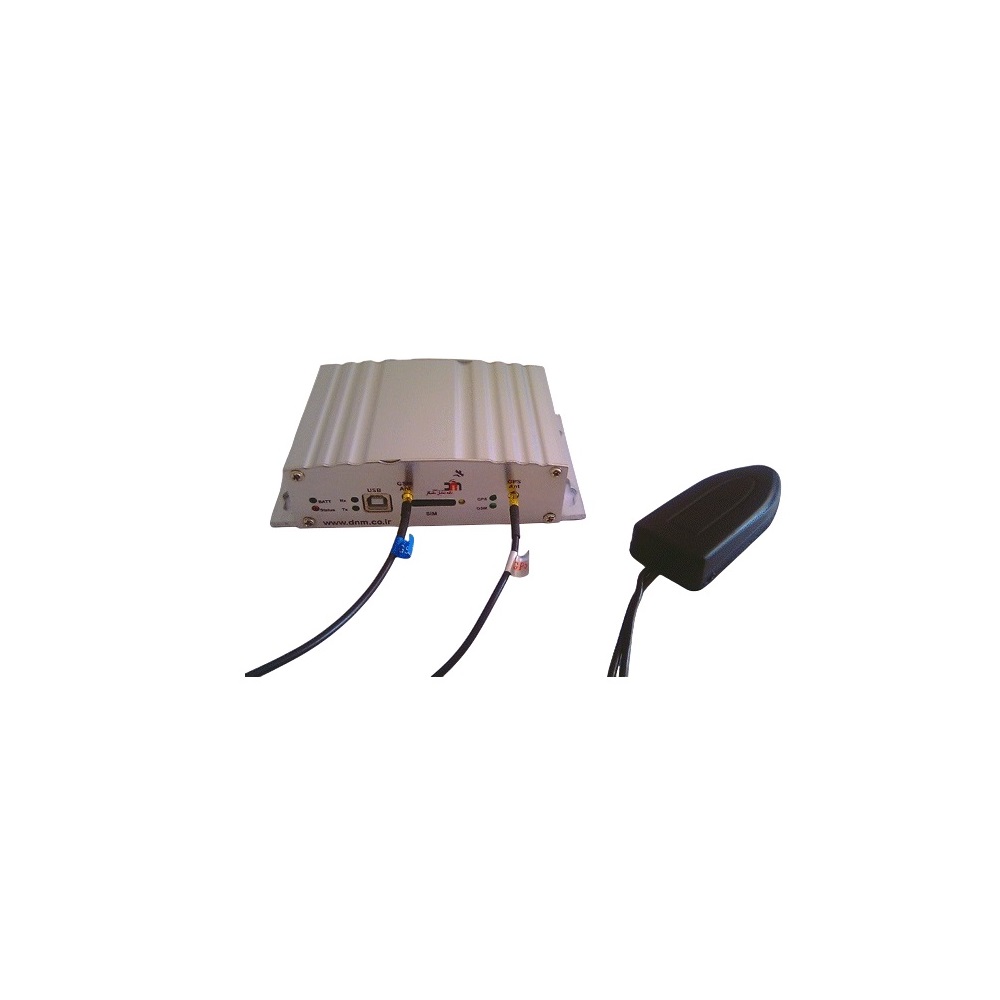

10. Internal & External GSM antenna
11. External GPS antenna
* LED
1- 2x USB (TX/RX)
2- GPS Status
3- GSM Status
4- Input Power Status
* GSM Module
– Quad-Band
GSM850/EGSM900/DCD1800/PC
S 1900
– Out Put Power :
GMSK:
• Class 4 (2W)@GSM850/EGSM900
• Class 1 (1W)@ DCS1800/PCS1900
8PSK:
• Class E2(0.5W)@GSM850GSM900
• Class E2(0.4W)@DCS1800/PCS1900
GPRS/EDGE multi-slot class 12
Coding scheme: CS 1~4,MS 1~9
Mobile station class B
* Memory
16 MB internal (TX/RX)
Micro SD Up to 8 GB
* Power Supply (10-30 V DC)
* Temperature Operation : -40 to +85 °c
* Internal Buttery (Up to 8h)
* GPS Module
– Receiver Type L1 C/A code, 65-channel Venus 6 engine
– Accuracy Position 2.5 m CEP
Velocity 0.1 m/sec
Time 300ns
– Startup Time 1 second hot start under open sky
29 second cold starts under open sky (average)
– Reacquisition 1s
– Sensitivity -161dBm tracking
– Multi-path Mitigation
Advanced multi-path detection and suppression
– A-GPS Support Prompt Fix® AGPS
– Update Rate Supports 1 / 2 / 4 / 5 / 8 / 10 Hz update rate (1Hz default)
– Dynamics 4G (39.2m/sec2)
– Operational Limits Altitude < 18,000m or velocity < 515m/s
– (COCOM limit, either may be exceeded but not both)
